Pump

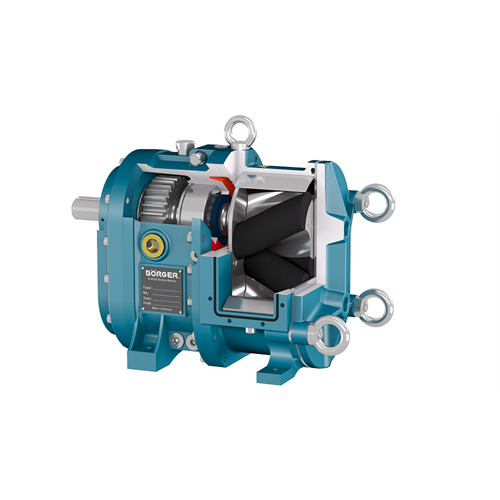

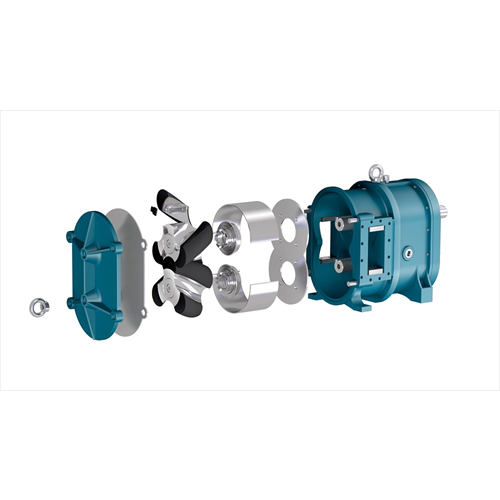

Rotary Lobe Pump series BLUEline - BOERGER

Technical Information

Flow rates of 4.4 - 7,050 usgpm (1 - 1,600 m³/h)

Pressure-resistant up to 174 psi (12 bar)

Offers you a range of 20 different pump sizes.

ATEX OPTIONS

  • Sensor system via intrinsically safe circuits (EX-i)
  • Can be applied in EX zones (zones 1 to 3) EX-de control cabinet casing
  • Functional safety with regard to sensor systems and actuators
  • Suitable for mobile use
Series Pump size Max. rpm Qmin. m³/h Qmax. m³/h Pmax. bar Max. temp. °C
BLUEline AN + 800 0.03 35 10 to 200
BLUEline PN + 800 0.06 75 12 to 200
BLUEline QN + 600 0.14 110 8 to 200
BLUEline PL + 700 0.11 115 8 to 200
BLUEline CL + 600 0.23 185 8 to 200
BLUEline FL + 600 0.34 410 12 to 200
BLUEline EL + 600 0.62 1,100 10 to 200
BLUEline XL + 450 1,1 1.440 10 to 200

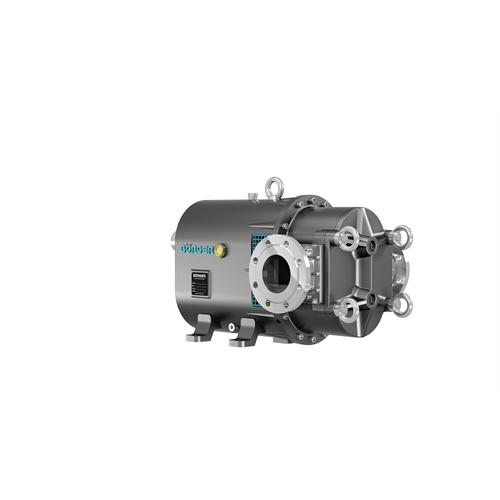

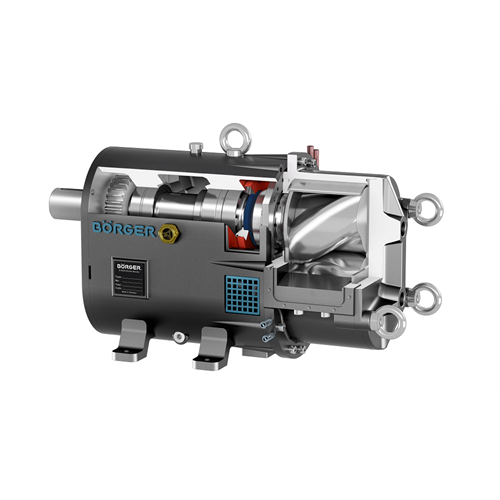

ONIXLINE - Rotary Lobe Pump High pressure - BOERGER

Technical Information

Flow rates of 4.4 - 595 usgpm (1 - 135 m³/h)

Pressure-resistant up to 232 psi (16 bar)

Highest flexibility when it comes to the sealing system

ATEX OPTIONS

  • Sensor system via intrinsically safe circuits (EX-i)
  • Can be applied in EX zones (zones 1 to 3) EX-de control cabinet casing
  • Functional safety with regard to sensor systems and actuators
  • Suitable for mobile use
Series Pump size Max. rpm Qmin. m³/h Qmax. m³/h Pmax. m³/h Max. temp. °C
ONIXline BJ 090 800 0.05 45 16 up to 200
ONIXline BJ 140 800 0.08 65 13 up to 200
ONIXline BL 190 800 0.11 90 16 up to 200

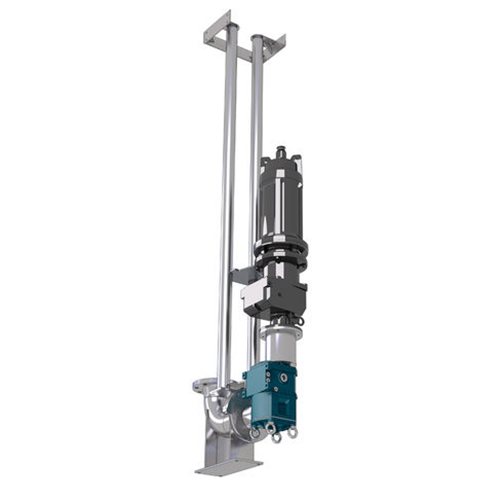

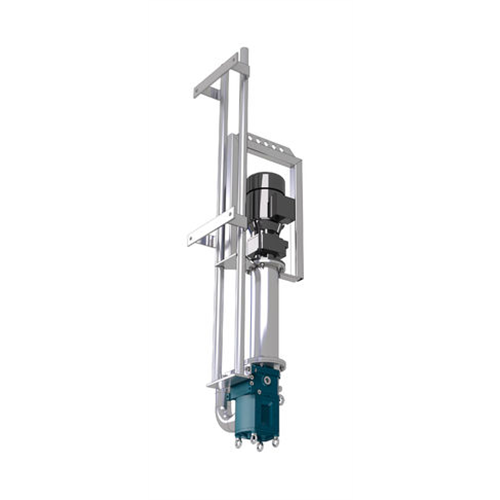

Submerged rotary lobe pumps - BOERGER

Benefits

  • Resistant to solids: Durable if pumped medium contains large amounts of sand.
  • For highly viscous media: Even highly viscous media can be conveyed with little effort.
  • Installation length of up to 6m: Semi-submerged pumps can be built with a coupling length of up to 6 m.
  • Resistant to chemicals: Even chemically aggressive media can be conveyed without any problems.
  • Gentle pumping: Shear-sensitive media are pumped gently.
  • Compact and powerful: Despite their compact size, the pumps are very powerful.
  • Customized: Each pump is configured and built individually.
  • ATEX-compliant: An ATEX-compliant pump design is available for use in potentially explosive atmospheres.

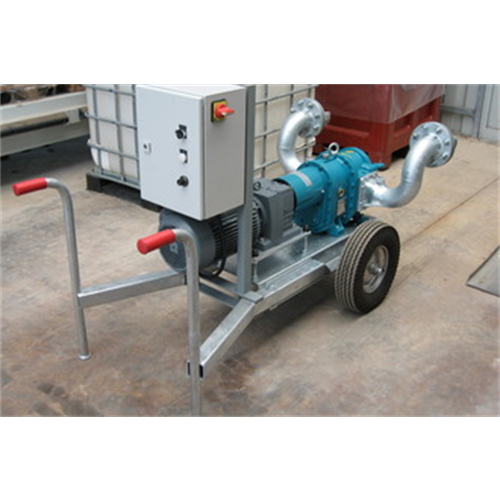

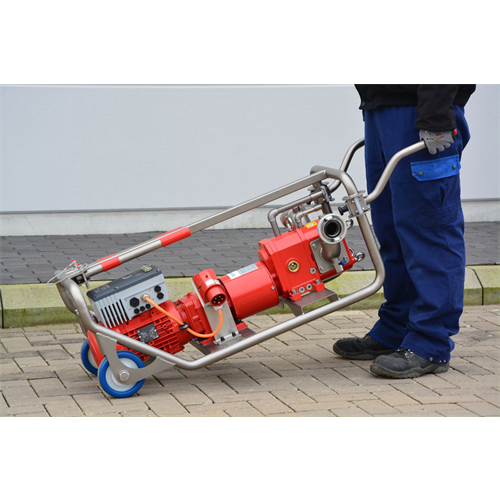

Mobile version for rotary lobe pump - BOERGER

Benefits

The pump can be maintained within a few minutes at any given location.

  • Easy to transport: Hand cart pumps are easy to push to the application site where they are required.
  • Ready for use right away: The hand cart pumps are ready for use right away − connect the hoses and start the drive.
  • Compact and powerful: Despite their compact size, the pumps are very powerful.
  • Resistant to chemicals: Even chemically aggressive media can be conveyed without any problems.
  • Different drive options: The drive can be selected according to the intended application.
  • Customized: Each pump is configured and built individually.
  • User-friendly: The pumps are very easy to operate.
  • ATEX-compliant: An ATEX-compliant pump design is available for use in potentially explosive atmospheres.
  • Very easy to maintain due to MIP (Maintenance in Place)
