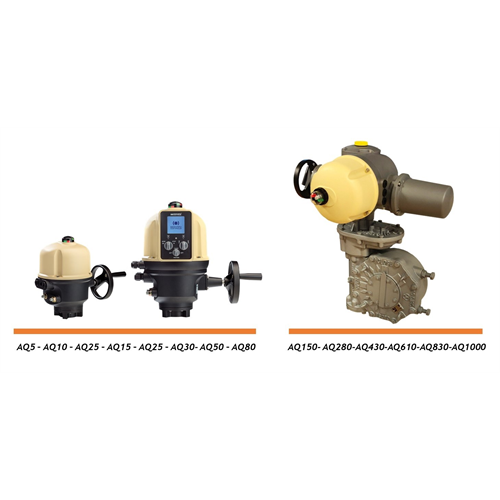

Electric Actuator Quarter-Turn - BERNARD CONTROLS

Technical information

Torque range

  • 50 to 10,000 Nm (up to 1000 Nm direct mount)
  • Up to 1,000,000 Nm on request

BC Duty & Modulating Classification

  • On-Off: Class A
  • Inching / Positioning : Class B
  • Modulating : Class III

Environment : IP 68 / C4 / T: -20°C ...+70°C (Low T° option -40°C)

Compact & optimized design

  • Super compact design (including integrated controls)
  • Product architecture & torque range adapted to customers’ requirements : 14 models from 50 to 10000 Nm
  • Multi-voltage (AC/DC) : suitable whatever your location on the globe

Reliable design

  • 100% of delivered products are tested with automatic process before delivery
  • S4 Motor Service Duty on all models
  • Suitable for modulating applications (BC Class III complying with EN15714-2 Class C)

Easy to use

  • Large LCD display on LOGIC version for user-friendly commissioning and local command. Easily orientable (4- way direction) in few clicks
  • BC APP: Bernard Controls new mobile application for setting, operating, troubleshooting and easy access to documentation

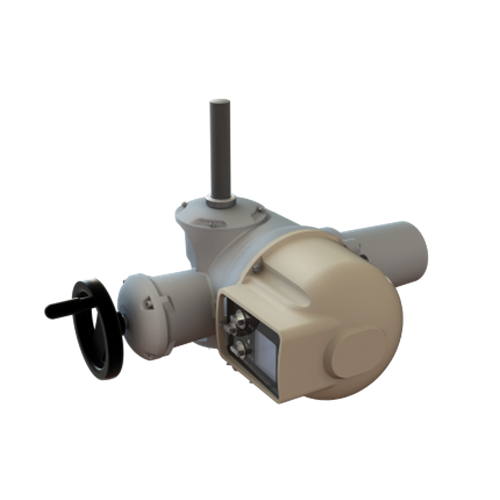

Weather-proof Multi-turn - BERNARD CONTROLS

Technical information

Torque range

  • 30 to 500 Nm (direct)
  • Up to 32,000 Nm on request

Type of Controls

  • C
  • Smart LOGIC (v2)

Environment : IP 68 / C4 (C5 option) / T: -20°C ...+70°C (Low T° option -40°C)

INNOVATIVE, RELIABLE & OPTIMIZED DESIGN

  • Product architecture & torque range adapted to customers’ requirements: 6 models from 30 to 500 Nm
  • Selection of the essential features to ensure a competitive but performing solution: actuator duty from On-Off to Modulating, heavy duty enclosure protection, IP68, integrated control, wide range of output speeds…
  • New reliable camblock system unaffected by vibrations. Fully new & unique design with internal modularity for compact solution, e.g. modular position sensor enables up to 1700 turns with the same product

PERFORMANCE FOR MULTI-TURN ACTUATION

  • Self-locking at all speeds without any additional component*
  • S4 Motor Service Duty on all models

Easy To Maintain

  • Declutch-free manual override for quick intervention on site
  • Mechanical position indicator on SWITCH versions: check the position of your valve at a glance
  • BC APP: Bernard Controls new mobile application for setting, operating, troubleshooting and easy access to documentation

THE MAIN FUNCTIONS OF INTEGRATED CONTROL WITH THE NEW LOGIC (v2)

  • Turn-key, time & cost-saving solution
  • User-friendly & intuitive
  • Non-intrusive setting for enhanced safety and reliability
  • Compatible with common fieldbus protocols: Modbus RTU, Profibus DPV1.
  • Bluetooth communication (as standard) to communicate with Bernard Controls’ BC App
