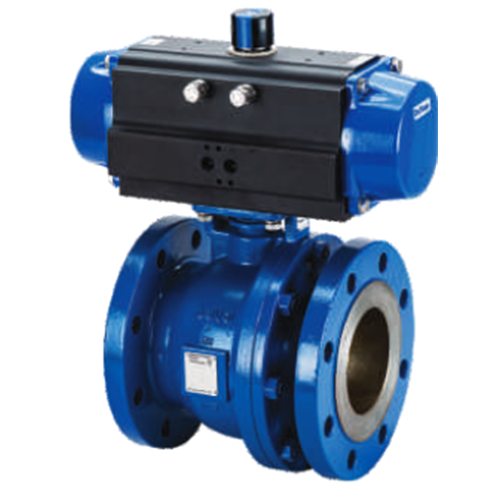

Ball Valves

Application

Chemical, waste water industry, high pressure application and accurate Open/Close operation.

Features

  • ISO 5211 top plate for direct mounting
  • Contoured seat design with no seat extrusion
  • Fully adjustable packing gland with actuator mounted
  • Live loaded graphite stem packing
  • Robust stem provides real blowout proof design
  • Anti-static device between ball-to-stem and stem-to-body connection
  • Self relieving seats as standard

Technical Information

Body Type Flanged RF
Body CS, SS
Ball CF8M, CF8, CF3M, CF3
Stem 316 SS, Duplex S31803, 17-4 PH
Seat PTFE, RTFE, PEEK, Delrin, Devlon, Nylon, Ultra
Size Range 1/2" to 12“ (DN 15 to 300) varies by series
Pressure Rating Series 65/69 – Class 150
Series 66/70 – Class 300
Series 67/71 – Class 600
Series 68/72 – Class 900
Design Standard BS EN 17292, ASME B16.34
Testing Standard ISO 5208
